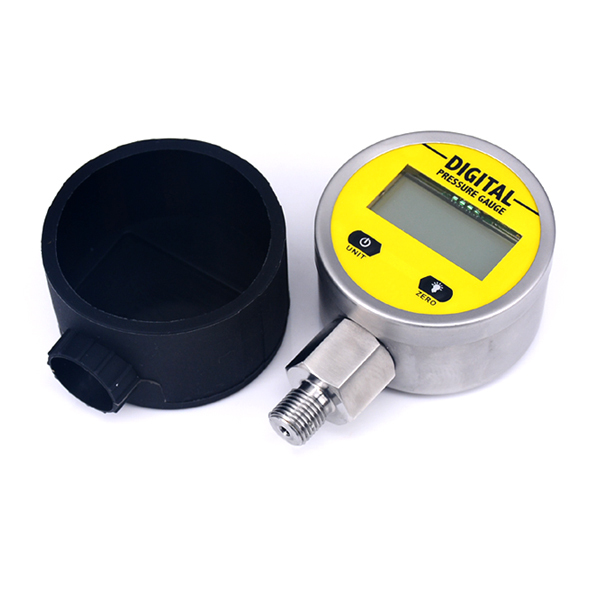

BX-DPG65 Digital Pressure Gauge

一，Feature：

1, The pressure gauge with LCD display,with zero clearing,backlight,on/off button,units to change,low

voltage alarm and other functions, the operation is simple, easy to install.

2, Battery-powered, low power design keeping it working more than 12 months.

二，Technical Parameters：

Pressure Range: 0-250BAR/25Mpa/3600PSI

Accuracy: 1%FS

Long-term Stability: 0.5%FS/year

Overload capacity:150%FS

Power Supply:3V(two triple A battery)

Battery life:12-24 months

Samping frequency:2 times/second

Display:4 digital LCD

Backlight color:white

Measurement medium:gas/water/oil

Working Temperature: -20℃-70℃

Connector Material:304SS

Shell:304SS

Other Type:can be customized

Electric Protection: En61326

Pressure Connector:NPT1/8 etc

Functions:backlight,on/off,units changing,zero clearing
