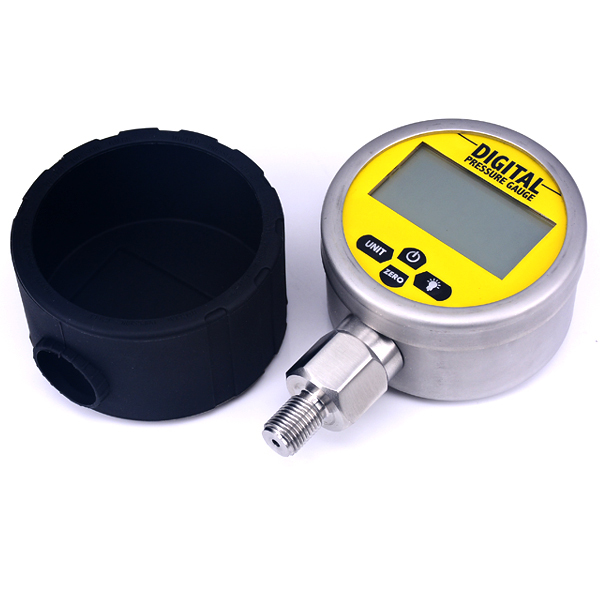

BX-DPG80 Digital Pressure Gauge

一，Feature：

1, 4 digital LCD showing the pressure accurately in real time

2, Different pressure units available ( Pa,Kpa,PSI,Kg/cm ² ,Bar,Mpa); zero clearing; backlight; on/off button;

low voltage alarm

3, Peak record (the maximun and the minimum)

4, Battery-powered, low power design keeping it working more than 12 months

二，Technical Parameters：

ressure Range: 0-200Mpa(customization)

Pressure Connection: G1/4;NPT1/4(customization)

Display Unit: MPa, Kgf/cm², PSI;

Input Voltage: 3V(two 1.5V batteries)

Accuracy: 0.25%FS

Overload Capacity: 150%

Long-term Stability: 0.2%FS/year

Working Temperature: -20℃-70℃

Footer Material and Pressure Connection: 304 Stainless Steel

Protection Class: IP65

Thickness: 46mm(18.1inch); Outline Dimension: 80mm(31.5inch); Length:120mm(47.2inch)
