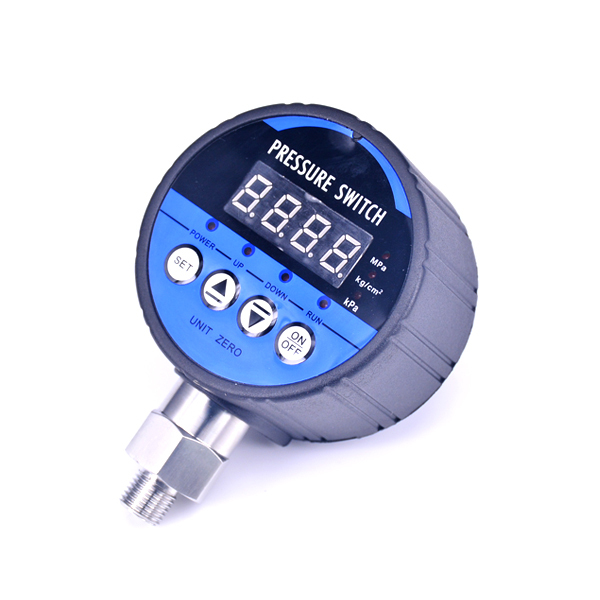

BX-DPS11 2A Fuse Digital Pressure Switch

BX-DPS11P Positive Pressure Digital Pressure Switch

BX-DPS11N Negative Pressure Digital Pressure Switch

BX-DPS11D Dual Output Digital Pressure Switch

一，Feature：

1, Setting pressure limits by your requirements;
2, Clear indicating by 4-ways LED digital value;
3, Relay signal output to avoid the device operate invalidly frequently;
4, Have longer life time by comparison with traditional mechanism switch;
5, Nice controlling accuracy, anti-vibration, strong anti-jamming ability and fast response;

6, Anti-vibration,strong anti-jamming ability;

7, Easy to connect the wires and install;

8, Display and control the pressure in time;

9, Can set upper/lower limit value and set alarm point;

10, It can keep all setting when the power cut off;

11, Will work 50000,000-10000,000 times if use everyday.

二，Technical Parameters：

Pressure Range：0-16bar etc

Overload Capacity：150%

Output：Relay output

Output Relay Capacity：220V AC 5A

Power Supply：220V AC;24V DC;380V AC

Alarm Point Setting: can set any point in the full scale

Accuracy：0.5%FS

Measurement Medium: which is compatible with stainless steel

Using Temperature：-20 to 65C

Installation Connection: M20*1.5;G1/2;G1/4;NPT1/4 etc
